دیجیتال داغ-فیلم بادسنج باد سنج سرعت باد اندازه گیری سرعت هوا اندازه گیری دمای 40M/S نگهداری داده ها به رایانه از طریق ابزار تشخیصی USB{2}}
SMART SENSOR anemometer is a device used for measuring wind speed, and is a common weather station instrument. "Anemos", meaning wind, and is used to describe any air speed measurement instrument used in meteorology or aerodynamics.
بادسنج ها به طور گسترده در زمینه های مختلف مانند گرمایش، تهویه، تهویه مطبوع، حفاظت از محیط زیست، نظارت بر صرفه جویی در انرژی، هواشناسی، کشاورزی، تبرید، خشک کردن، بررسی بهداشت کار، کارگاه تمیز، الیاف شیمیایی و نساجی، جنبه های مختلف آزمایشگاه باد، استفاده می شود. طیف وسیعی از اهداف
مشخصات محصول
جزییات فنی
Wind Speed Range | 0.040m/s | ||||
Wind Volume Range | 0999900m3/min | ||||
Wind Speed Accuracy | ±1 percent ±0.1 | ||||

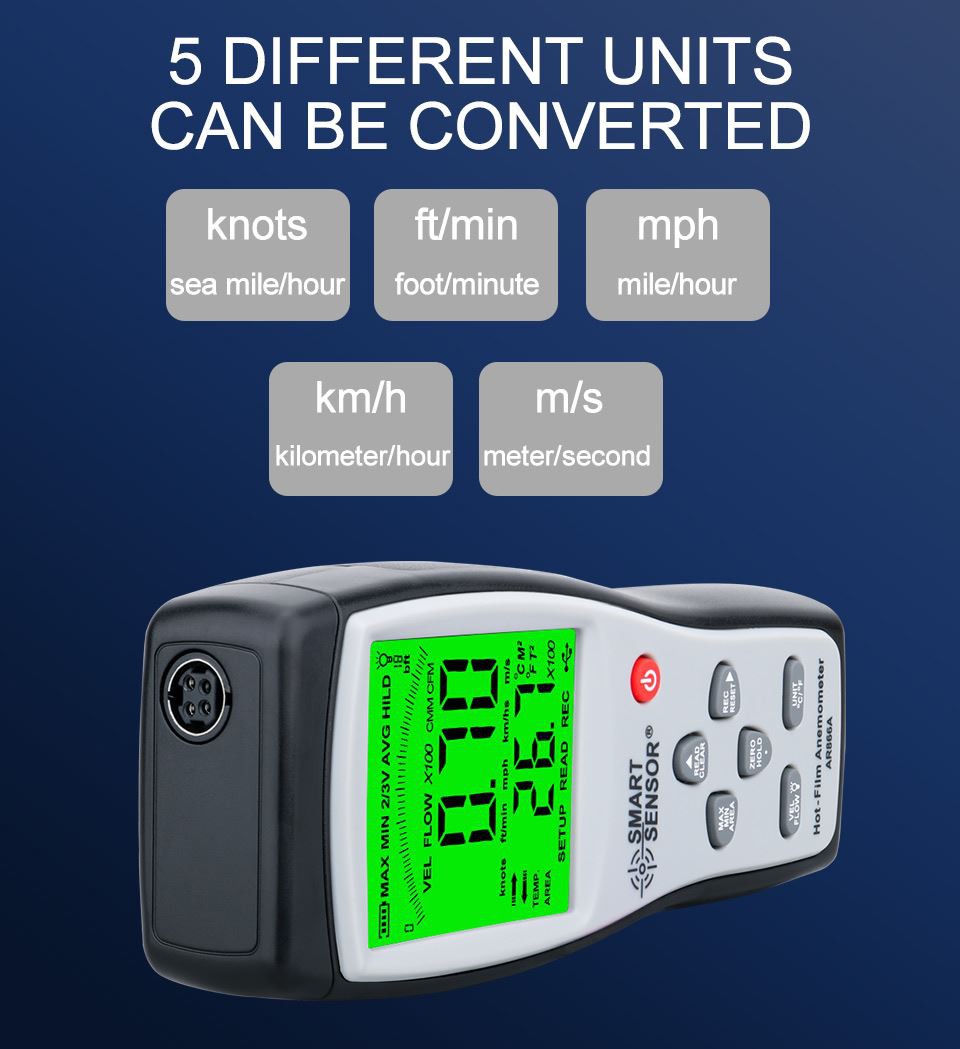

Wind Speed Units | m/s, ft/min, Knots, km/h, mph | ||||
Wind Volume Units | CMM / CFM | ||||
Wind Speed Resolution | 0.01m/s | ||||
Max Min Measuring | yes | ||||
Current/Average Measuring | yes | ||||
Range Bar Graph | yes | ||||
Operating Current | Less than or equal to 18Ma | ||||
Temp. Measuring Range | 045 degree | ||||
Temp. Resolution | 0.1 degree | ||||
degree / ℉Selection | yes | ||||
Backlight Display | yes | ||||
Auto/Manual Power Off | yes | ||||
Range Bar Graph | yes | ||||

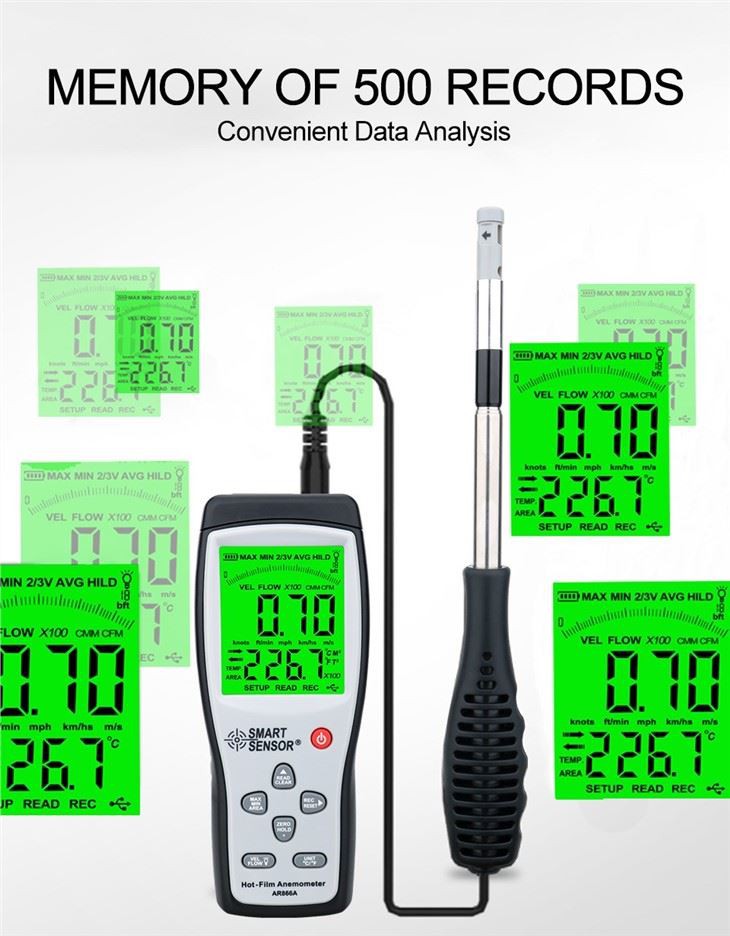

Data Storage | 500 groups | ||||
USB Data Connection | yes | ||||
Power | 9V Battery (not include due to air limit) | ||||
Low battery indicating : | 4.4v±0.2V | ||||
Stand by current | Less than or equal to 2uA | ||||
Dimensions: | Meter :149.8980.3838.92mm | ||||
Product Weight | 320.5g (Not Included Battery ) | ||||

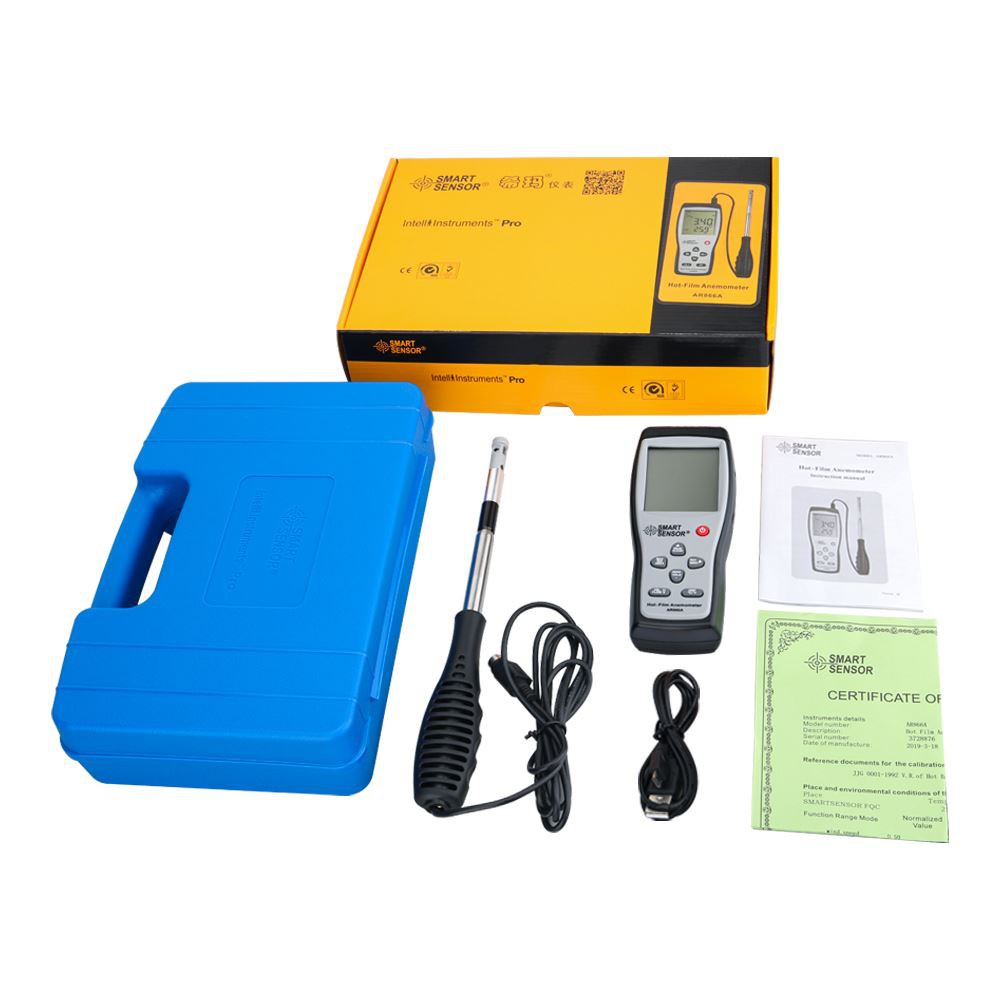

Packing Contents | 1pc Hot Film Anemometer | ||||
1pc Sensor side machine | |||||
1pc Power adapter | |||||
1pc Software disc | |||||
1pc USB computer connecting cable | |||||
1pc PP packing box | |||||
محدوده جریان باد | |||||
CMM:0-999900m3/MIN CFM: 0-999900ft3/min | |||||
Unit | Range | Resolution | Area | ||
CFM(FT3/MUM | 0-999900 | 0.001-100 | 0.001-9999 | ||
CMM (M3/MIN) | 0-999900 | 0.001-100 | 0.001-9999 | ||
Air Temperature Range ( Wind temperature ) | |||||
Unit | Range | Resolution | Accuracy | ||
degree | 0 degree plus 45 degree | 0.1 | ±1.0 degree | ||
℉ | 32℉113℉ | 0.1 | ±1.8℉ | ||
محدوده سرعت باد | |||||
Unit | Wind Velocity | Resolution | Lowest point of start value | Accuracy | |
m/s | 040 | 0.01 | 0.01 | ±3 percent ±0.1dgts | |
Ft/min | 07874 | 1 | 60 | ±3 percent ±20dgts | |
Knots | 077.76 | 0.1 | 0.6 | ±3 percent ±0.2dgts | |
Km/h | 0144.00 | 0.1 | 1.0 | ±3 percent ±0.4dgts | |
Mph | 067.20 | 0.1 | 0.7 | ±3 percent ±0.2dgts | |
Unit Conversatin | |||||
m/s | Ft/min | Knots | Km/h | Mph | |
1m/s | 1 | 196.87 | 1.944 | 3.60 | 2.24 |
1Ft/min | 0.00508 | 1 | 0.00987 | 0.01829 | 0.01138 |
1 Knots | 0.5144 | 101.27 | 1 | 1.8519 | 1.1523 |
1km/h | 0.2778 | 54.69 | 0.54 | 1 | 0.6222 |
1 Mph | 0.4464 | 87.89 | 0.8679 | 1.6071 | 1 |
شرایط عملیات: | |||||
Temperature | Humidity | ||||
Host | 0-50 degree (32℉122℉) | Less than or equal to 80 percent RH | |||
Sensor | 0-60 degree (32℉140℉) | ||||
شرایط نگهداری : | |||||
Temperature | -40 degree 60 degree (-40℉140℉) | ||||
Humidity | Less than or equal to 80 percent RH | ||||
مشخصات محصول
دماسنج سرعت باد
